Office Organization
Power and Charging

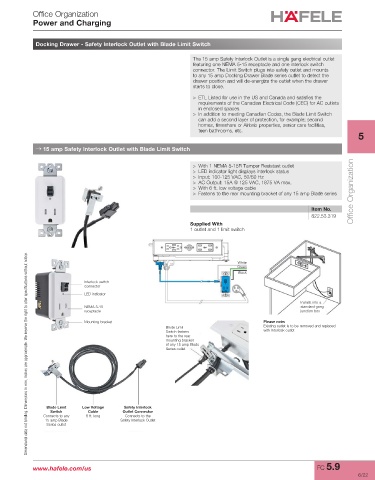

Docking Drawer - Safety Interlock Outlet with Blade Limit Switch

The 15 amp Safety Interlock Outlet is a single gang electrical outlet
featuring one NEMA 5-15 receptacle and one interlock switch
connector. The Limit Switch plugs into safety outlet and mounts
to any 15 amp Docking Drawer Blade series outlet to detect the
drawer position and will de-energize the outlet when the drawer
starts to close.
> ETL Listed for use in the US and Canada and satisfies the
requirements of the Canadian Electrical Code (CEC) for AC outlets
in enclosed spaces.
> In addition to meeting Canadian Codes, the Blade Limit Switch
can add a second layer of protection, for example; second
homes, timeshare or Airbnb properties, senior care facilities,
teen bathrooms, etc.
5

→ 15 amp Safety Interlock Outlet with Blade Limit Switch

> With 1 NEMA 5-15R Tamper Resistant outlet
> LED indicator light displays interlock status
> Input: 100-125 VAC, 50/60 Hz
> AC Output: 15A @ 125 VAC, 1875 VA max.
> With 6 ft. low voltage cable
> Fastens to the rear mounting bracket of any 15 amp Blade series Office Organization

Item No.
822.53.319
Supplied With
1 outlet and 1 limit switch

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
White
Green
Black
Interlock switch
connector
LED indicator
Installs into a
NEMA 5-15 standard gang
receptacle junction box
Mounting bracket Please note:
Blade Limit Existing outlet is to be removed and replaced
Switch fastens with Interlock outlet
here to the rear
mounting bracket
of any 15 amp Blade
Series outlet

Blade Limit Low Voltage Safety Interlock
Switch Cable Outlet Connector
Connects to any 6 ft. long Connects to the
15 amp Blade Safety Interlock Outlet
Series outlet

www.hafele.com/us FC 5.9
6/22
