Page 387 - Furniture Cabinetry Hardware-FloorKitchenResource.com
P. 387
Office Organization
Power and Charging

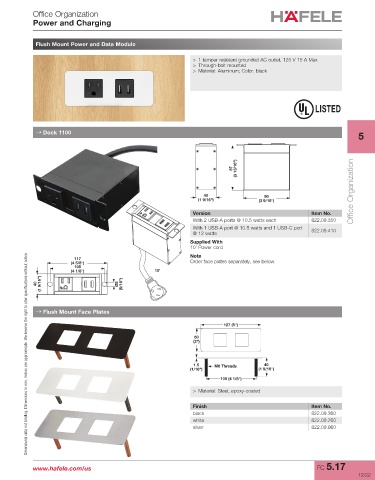

Flush Mount Power and Data Module
> 1 tamper resistant grounded AC outlet, 125 V 15 A Max
> Through-bolt mounted
> Material: Aluminum; Color: black
LISTED
®
→ Dock 1100
5
(3 13/16")
87
40 90 Office Organization
(1 9/16") (3 9/16")
Version Item No.
With 2 USB-A ports @ 10.5 watts each 822.09.350
With 1 USB-A port @ 10.5 watts and 1 USB-C port 822.09.410
@ 12 watts
Supplied With
10' Power cord
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Note
117
(4 5/8") Order face plates separately, see below.
105
(4 1/8") 10'
40 (1 9/16") Ø8 (5/16")
→ Flush Mount Face Plates
127 (5")
50
(2")
1.5 M6 Threads 40
(1/16") (1 9/16")
105 (4 1/8")
> Material: Steel, epoxy-coated
Finish Item No.
black 822.09.360
white 822.09.760
silver 822.09.960
www.hafele.com/us FC 5.17
12/22
