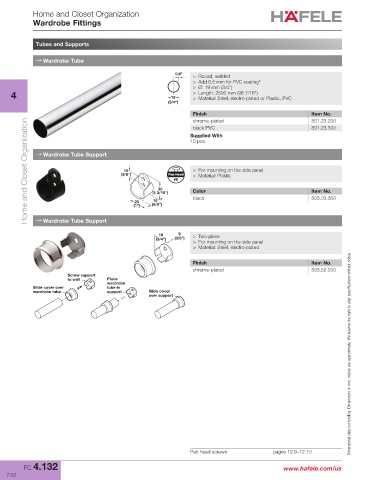

Home and Closet Organization
Wardrobe Fittings

Tubes and Supports

→ Wardrobe Tube
0.6* > Round, welded
> Add 0.5 mm for PVC coating*
> Ø: 19 mm (3/4")
4 19 > Length: 2500 mm (98 7/16")
> Material: Steel, electro-plated or Plastic, PVC
(3/4")

Finish Item No.
801.23.200
Home and Closet Organization → Wardrobe Tube Support (3/8") 25 15 30 Pan Head > For mounting on the side panel Item No.
chrome-plated
black PVC
801.23.300
Supplied With
10 pcs.

10
> Material: Plastic
#8
Color
(1 3/16")
803.03.300
black
(5/8")
(1")
→ Wardrobe Tube Support

19 9 > Two-piece
(3/4") (3/8")
> For mounting on the side panel
> Material: Steel, electro-plated

Finish Item No.
chrome-plated 803.52.200
Screw support
to wall Place
wardrobe
Slide cover over tube in
wardrobe tube support Slide cover
over support Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Pan head screws pages 12.9–12.10
FC 4.132 www.hafele.com/us
