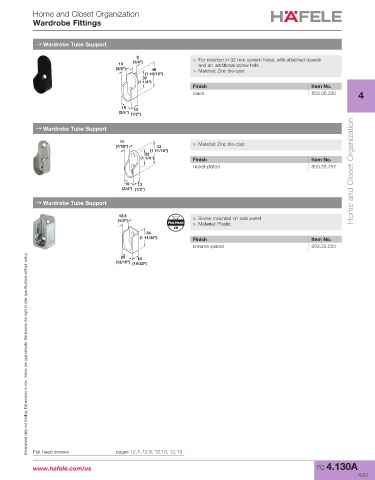

P. 329
Home and Closet Organization
Wardrobe Fittings
→ Wardrobe Tube Support
6 > For insertion in 32 mm system holes, with attached dowels
10 (1/4") and an additional screw hole
(3/8") 46 > Material: Zinc die-cast
(1 13/16")
32
(1 1/4")
Finish Item No.
black 803.06.330 4
19 13
(3/4") (1/2")
→ Wardrobe Tube Support
11
(7/16") 43 > Material: Zinc die-cast
(1 11/16")
32
(1 1/4") Finish Item No.
nickel-plated 803.33.757 Home and Closet Organization
19 13
(3/4") (1/2")
→ Wardrobe Tube Support
12.5
(1/2") > Screw mounted on side panel
Flat Head > Material: Plastic
#6
34
(1 11/32") Finish Item No.
chrome-plated 803.25.220
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
20 15
(13/16") (19/32")
Flat head screws pages 12.7–12.8, 12.10, 12.13
