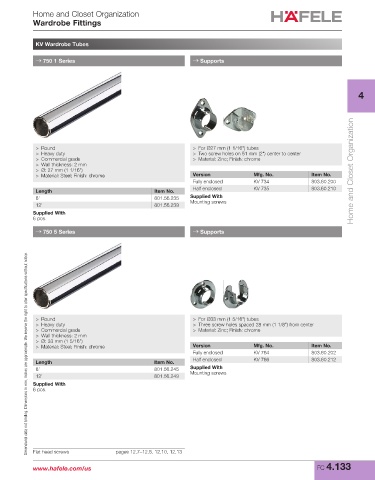

P. 333
Home and Closet Organization
Wardrobe Fittings
KV Wardrobe Tubes
→ 750 1 Series → Supports
4
> Round > For Ø27 mm (1 1/16") tubes
> Heavy duty > Two screw holes on 51 mm (2") center to center
> Commercial grade > Material: Zinc; Finish: chrome
> Wall thickness: 2 mm
> Ø: 27 mm (1 1/16") Home and Closet Organization
> Material: Steel; Finish: chrome Version Mfg. No. Item No.
Fully enclosed KV 734 803.60.200
Half enclosed KV 735 803.60.210
Length Item No.
8' 801.56.235 Supplied With
12' 801.56.239 Mounting screws
Supplied With
6 pcs.
→ 750 5 Series → Supports
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Round > For Ø33 mm (1 5/16") tubes
> Heavy duty > Three screw holes spaced 28 mm (1 1/8") from center
> Commercial grade > Material: Zinc; Finish: chrome
> Wall thickness: 2 mm
> Ø: 33 mm (1 5/16")
> Material: Steel; Finish: chrome Version Mfg. No. Item No.
Fully enclosed KV 764 803.60.202
Half enclosed KV 766 803.60.212
Length Item No.
8' 801.56.245 Supplied With
12' 801.56.249 Mounting screws
Supplied With
6 pcs.
Flat head screws pages 12.7–12.8, 12.10, 12.13
www.hafele.com/us FC 4.133
