Kitchen Organization
Corner Solutions

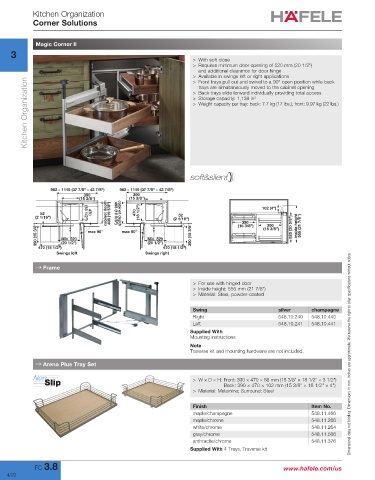

Magic Corner II
3
> With soft close
> Requires minimum door opening of 520 mm (20 1/2")
and additional clearance for door hinge
> Available in swings left or right applications
Kitchen Organization > Storage capacity: 1,138 in 2
> Front trays pull out and swivel to a 90° open position while back
trays are simultaneously moved to the cabinet opening
> Back trays slide forward individually providing total access
> Weight capacity per tray: back: 7.7 kg (17 lbs.), front: 9.97 kg (22 lbs.)

962 – 1115 (37 7/8" – 43 7/8") 962 – 1115 (37 7/8" – 43 7/8")
390 390
(15 3/8") (15 3/8")

52 (18 1/2") 470 cabinet depth 498 (19 5/8") 498 (19 5/8") cabinet depth 470 (18 1/2") 52 102 (4")
(2 1/16") (2 1/16") (15 3/8") 390 555 (21 7/8")
390
390 (15 3/8") Min. 520 max 90° max 90° Min. 520 390 (15 3/8") (15 3/8") 525 (20 5/8") inside height

470 (18 1/2") (20 1/2") (20 1/2") 470 (18 1/2")
Swings left Swings right

→ Frame

> For use with hinged door
> Inside height: 555 mm (21 7/8")
> Material: Steel, powder-coated

Swing silver champagne
Right 548.10.240 548.10.440
Left 548.10.241 548.10.441
Supplied With
Mounting instructions
Note
Traverse kit and mounting hardware are not included. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ Arena Plus Tray Set

> W × D × H: Front: 390 × 470 × 88 mm (15 3/8" × 18 1/2" × 3 1/2")
Back: 390 × 470 × 102 mm (15 3/8" × 18 1/2" × 4")
> Material: Melamine; Surround: Steel

Finish Item No.
maple/champagne 548.11.466
maple/chrome 548.11.266
white/chrome 548.11.264
gray/chrome 548.11.566
anthracite/chrome 548.11.376
Supplied With 4 Trays, Traverse kit

FC 3.8 www.hafele.com/us
