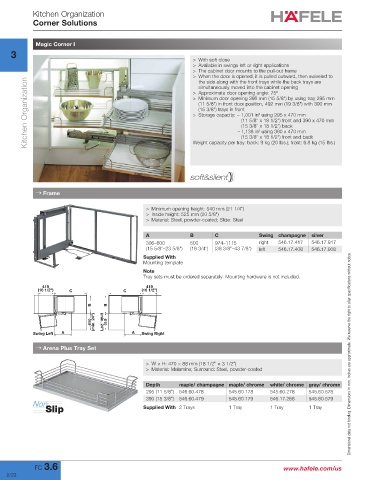

Kitchen Organization
Corner Solutions

Magic Corner I
3
> With soft close
> Available in swings left or right applications
> The cabinet door mounts to the pull-out frame
> When the door is opened, it is pulled outward, then swiveled to
Kitchen Organization > Minimum door opening 396 mm (15 5/8") by using tray 295 mm
the side along with the front trays while the back trays are
simultaneously moved into the cabinet opening
> Approximate door opening angle: 75º
(11 5/8") in front door position, 492 mm (19 3/8") with 390 mm
(15 3/8") trays in front
> Storage capacity: – 1,001 in using 295 x 470 mm
2
(11 5/8" x 18 1/2") front and 390 x 470 mm

(15 3/8" x 18 1/2") back

– 1,138 in using 390 x 470 mm

2

(15 3/8" x 18 1/2") front and back
Weight capacity per tray: back: 9 kg (20 lbs.); front: 6.8 kg (15 lbs.)

→ Frame

> Minimum opening height: 540 mm (21 1/4")
> Inside height: 525 mm (20 5/8")
> Material: Steel, powder-coated; Slide: Steel

A B C Swing champagne silver
396–600 500 974–1115 right 546.17.417 546.17.917
(15 5/8"–23 5/8") (19 3/4") (38 3/8"–43 7/8") left 546.17.408 546.17.908
Supplied With
Mounting template
Note
Tray sets must be ordered separately. Mounting hardware is not included.
419 419
(16 1/2") C C (16 1/2")

B B
(min. 24") 610
610 (min. 24")

Swing Left A A Swing Right
→ Arena Plus Tray Set Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

> W × H: 470 × 88 mm (18 1/2" × 3 1/2")
> Material: Melamine; Surround: Steel, powder-coated

Depth maple/ champagne maple/ chrome white/ chrome gray/ chrome
295 (11 5/8") 546.60.478 545.60.178 545.60.278 545.60.578
390 (15 3/8") 546.60.479 545.60.179 546.17.268 545.60.579
Supplied With 2 Trays 1 Tray 1 Tray 1 Tray
