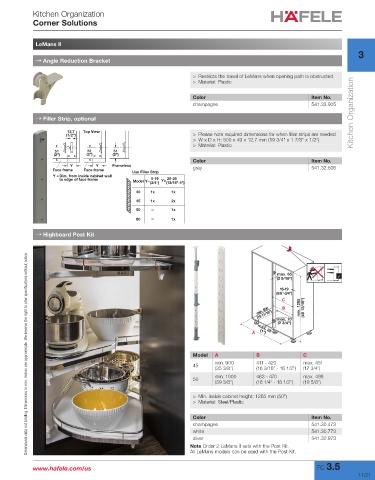

Kitchen Organization
Corner Solutions

LeMans II
3
→ Angle Reduction Bracket

> Restricts the travel of LeMans when opening path is obstructed
> Material: Plastic

Color Item No.
champagne 541.33.905

→ Filler Strip, optional Kitchen Organization
12.7 Top View
(1/2") > Please note required dimensions for when filler strips are needed
> W x D x H: 500 x 49 x 12.7 mm (19 3/4" x 1 7/8" x 1/2")
> Material: Plastic
51 51 51
(2") (2") (2")
Color Item No.
Y Y Frameless
Face frame Face frame Use Filler Strip gray 541.32.506
Y = Dim. from inside cabinet wall
to edge of face frame Model Y= 0-19 Y= 20-25
(13/16"-1")
(3/4")
40 1x 1x
45 1x 2x
50 — 1x
60 — 1x

→ Highboard Post Kit

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

max. 65
(2 9/16")
16-19
(5/8"-3/4")
C
min. 500 B min. 1265 (49 13/16")
(19 11/16")
max. 70
(2 3/4")
A max. 25
(1")

Model A B C
min. 900 411 - 420 max. 451
45
(35 3/8") (16 3/16" - 16 1/2") (17 3/4")
min. 1000 463 - 470 max. 498
50
(39 3/8") (18 1/4" - 18 1/2") (19 5/8")
> Min. inside cabinet height: 1265 mm (50")
> Material: Steel/Plastic

Color Item No.
champagne 541.30.473
white 541.30.773
silver 541.30.973
Note Order 2 LeMans II sets with the Post Kit.
All LeMans models can be used with the Post Kit.
