Kitchen Organization
Corner Solutions

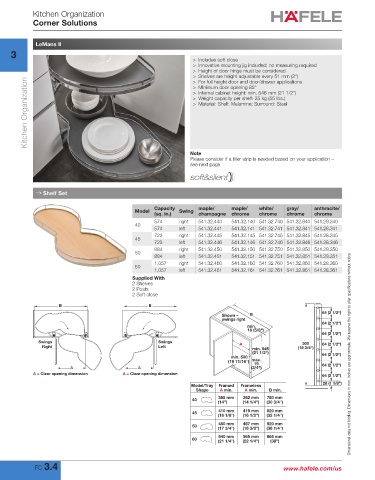

LeMans II
3
> Includes soft close
> Innovative mounting jig included; no measuring required
> Height of door hinge must be considered
> Shelves are height adjustable every 51 mm (2")
Kitchen Organization > Weight capacity per shelf: 25 kg (55 lbs.)
> For full height door and door/drawer applications
> Minimum door opening 85°
> Internal cabinet height: min. 546 mm (21 1/2")
> Material: Shelf: Melamine; Surround: Steel

Note
Please consider if a filler strip is needed based on your application –
see next page.

→ Shelf Set

Model Capacity Swing maple/ maple/ white/ gray/ anthracite/
(sq. in.) champagne chrome chrome chrome chrome
574 right 541.32.440 541.32.140 541.32.740 541.32.840 541.28.340
40
574 left 541.32.441 541.32.141 541.32.741 541.32.841 541.28.341
723 right 541.32.445 541.32.145 541.32.745 541.32.845 541.28.345
45
723 left 541.32.446 541.32.146 541.32.746 541.32.846 541.28.346
884 right 541.32.450 541.32.150 541.32.750 541.32.850 541.28.350
50
884 left 541.32.451 541.32.151 541.32.751 541.32.851 541.28.351
1,057 right 541.32.460 541.32.160 541.32.760 541.32.860 541.28.360
60
1,057 left 541.32.461 541.32.161 541.32.761 541.32.861 541.28.361
Supplied With
2 Shelves
2 Posts
2 Soft close

B B
Shown – B 64 (2 1/2")
swings right
64 (2 1/2")
min.
16 (5/8")
64 (2 1/2")
Swings Swings A 500 64 (2 1/2")
Right Left min. 545 (19 3/4")
(21 1/2") 64 (2 1/2") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
min. 500
(19 11/16") max.
19
A A (3/4") 64 (2 1/2")
A = Clear opening dimension A = Clear opening dimension 64 (2 1/2")
Model/Tray Framed Frameless 28 (1 1/8")
Shape A min. A min. B min.
40 355 mm 362 mm 780 mm
(14") (14 1/4") (30 3/4")
45 410 mm 419 mm 820 mm
(16 1/8") (16 1/2") (32 1/4")
50 450 mm 467 mm 920 mm
(17 3/4") (18 3/8") (36 1/4")
540 mm 565 mm 965 mm
60 (21 1/4") (22 1/4") (38")

FC 3.4 www.hafele.com/us
