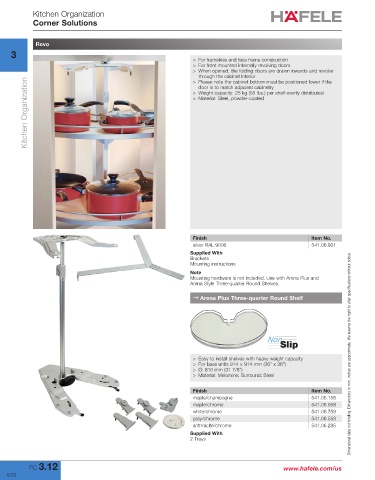

P. 22
Kitchen Organization
Corner Solutions
Revo
3
> For frameless and face frame construction
> For front mounted internally revolving doors
> When opened, the folding doors are drawn inwards and revolve
through the cabinet interior
Kitchen Organization > Material: Steel, powder-coated
> Please note the cabinet bottom must be positioned lower if the
door is to match adjacent cabinetry
> Weight capacity: 25 kg (55 lbs.) per shelf evenly distributed
Finish Item No.
silver RAL 9006 541.06.901
Supplied With
Brackets
Mounting instructions
Note
Mounting hardware is not included. Use with Arena Plus and
Arena Style Three-quarter Round Shelves.
→ Arena Plus Three-quarter Round Shelf
> Easy to install shelves with heavy weight capacity Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> For base units 914 × 914 mm (36" x 36")
> Ø: 810 mm (31 7/8")
> Material: Melamine; Surround: Steel
Finish Item No.
maple/champagne 541.06.158
maple/chrome 541.06.958
white/chrome 541.06.758
gray/chrome 541.06.558
anthracite/chrome 541.06.285
Supplied With
2 Trays
FC 3.12 www.hafele.com/us
5/22
