Home and Closet Organization
Cabinet Hangers

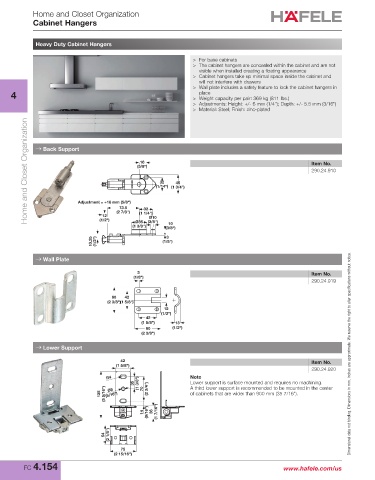

Heavy Duty Cabinet Hangers

> For base cabinets
> The cabinet hangers are concealed within the cabinet and are not
visible when installed creating a floating appearance
> Cabinet hangers take up minimal space inside the cabinet and
will not interfere with drawers
> Wall plate includes a safety feature to lock the cabinet hangers in
4 place
> Weight capacity per pair: 369 kg (811 lbs.)
> Adjustments: Height: +/- 6 mm (1/4"); Depth: +/- 5.5 mm (3/16")
> Material: Steel; Finish: zinc-plated
Home and Closet Organization → Back Support (5/8") (1/14") (1 3/4") Item No.

16
290.24.910

32
45

Adjustment = +16 mm (5/8")
73.5
(2 7/8")
(1 1/4")
12
Ø10
(1/2")
Ø35
10
(1 3/8") 32 (3/8") (3/8")
3
13.25 (1/2") (1/8")
→ Wall Plate
3 Item No.
(1/8")
290.24.919

60 42
(2 3/8") (1 5/8")
12
(1/2")
42
(1 5/8") 13
60 (1/2")
(2 3/8")

→ Lower Support

42 Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1 5/8")
290.24.920
R4 Note
35 (1 3/8") Lower support is surface mounted and requires no machining.
A third lower support is recommended to be mounted in the center
(5 5/16") Ø8 70 (2 3/4") of cabinets that are wider than 900 mm (35 7/16").
135 (5/16")
(9/16") 36 (1 7/16")
14

(2 1/8")
54

75
(2 15/16")
FC 4.154 www.hafele.com/us
