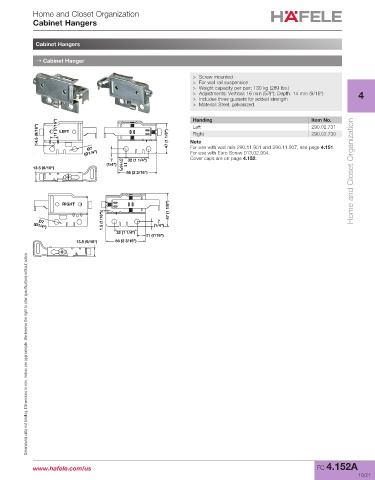

P. 353
Home and Closet Organization
Cabinet Hangers
Cabinet Hangers
→ Cabinet Hanger
> Screw mounted
> For wall rail suspension
> Weight capacity per pair: 130 kg (289 lbs.)
> Adjustments: Vertical: 16 mm (5/8"); Depth: 14 mm (9/16") 4
> Includes three gussets for added strength
> Material: Steel, galvanized
Handing
Left
290.02.731
14.5 (9/16") 11 (7/16") LEFT 47 (1 1/8") Note Item No.
290.02.730
Right
Ø7 For use with wall rails 290.11.901 and 290.11.907, see page 4.151.
(Ø1/4") For use with Euro Screw 013.02.904.
7 32 (1 1/4") Cover caps are on page 4.152.
(1/4") (7/16") 11
13.5 (9/16")
55 (2 3/16") Home and Closet Organization
RIGHT 47 (1 1/8")
Ø7 1.5 (1/16") 7
(Ø1/4") (1/4")
32 (1 1/4")
11 (7/16")
13.5 (9/16") 55 (2 3/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
www.hafele.com/us FC 4.152A
10/21
