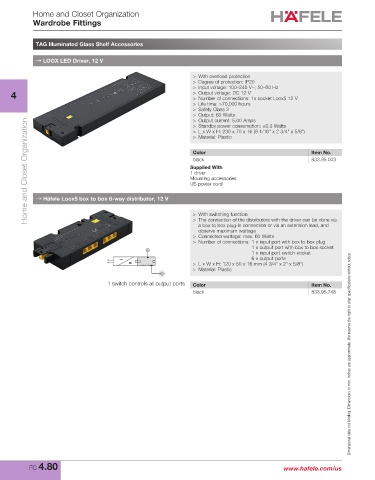

P. 274

Home and Closet Organization
            Wardrobe Fittings


             TAG Illuminated Glass Shelf Accessories


             → LOOX LED Driver, 12 V

                                                                >  With overload protection
                                                                >  Degree of protection: IP20
                                                                >  Input voltage: 100–240 V~; 50–60 Hz
     4                                                          >  Output voltage: DC 12 V
                                                                >  Number of connections: 1x socket Loox5 12 V
                                                                >  Life time: >70,000 hours
                                                                >  Safety Class 2
                                                                >  Output: 60 Watts
                                                                >  Output current: 5.00 Amps
          Home and Closet Organization  → Häfele Loox5 box to box 6-way distributor, 12 V  Supplied With  Item No.
                                                                >  Standby power consumption: ≤0.3 Watts
                                                                >  L x W x H: 230 x 70 x 16 (9 1/16" x 2 3/4" x 5/8")
                                                                >  Material: Plastic
                                                                Color
                                                                                                       833.95.003
                                                                black
                                                               1 driver
                                                               Mounting accessories
                                                               US power cord




                                                                >  With switching function
                                                                >  The connection of the distributors with the driver can be done via
                                                                  a box to box plug-in connection or via an extension lead, and
                                                                  observe maximum wattage
                                                                >  Connected wattage: max. 60 Watts
                                                                >  Number of connections:  1 x input port with box to box plug
                                                                                   1 x output port with box to box socket
                                                                                   1 x input port switch socket
                                                                                   6 x output ports
                                                                >  L x W x H: 120 x 50 x 16 mm (4 3/4" x 2" x 5/8")
                                                                >  Material: Plastic

                                    1 switch controls all output ports  Color                          Item No.
                                                                black                                  833.95.748  Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

































           FC 4.80                                                                            www.hafele.com/us
