Home and Closet Organization
Wardrobe Fittings

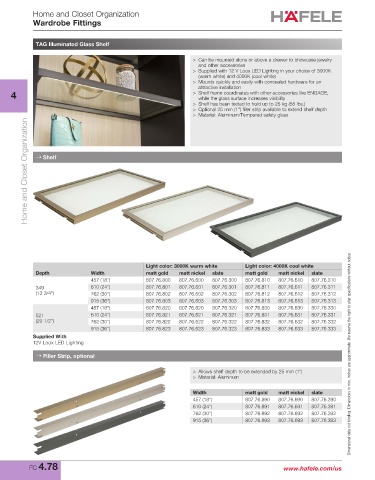

TAG Illuminated Glass Shelf

> Can be mounted alone or above a drawer to showcase jewelry
and other accessories
> Supplied with 12 V Loox LED Lighting in your choice of 3000K
(warm white) and 4000K (cool white)
> Mounts quickly and easily with concealed hardware for an
attractive installation
4 > Shelf frame coordinates with other accessories like ENGAGE,
while the glass surface increases visibility
> Shelf has been tested to hold up to 25 kg (55 lbs.)
> Optional 25 mm (1") filler strip available to extend shelf depth
> Material: Aluminum/Tempered safety glass
Home and Closet Organization → Shelf

Light color: 3000K warm white Light color: 4000K cool white
Depth Width matt gold matt nickel slate matt gold matt nickel slate
457 (18") 807.76.800 807.76.600 807.76.300 807.76.810 807.76.610 807.76.310
349 610 (24") 807.76.801 807.76.601 807.76.301 807.76.811 807.76.611 807.76.311
(13 3/4") 762 (30") 807.76.802 807.76.602 807.76.302 807.76.812 807.76.612 807.76.312
915 (36") 807.76.803 807.76.603 807.76.303 807.76.813 807.76.613 807.76.313
457 (18") 807.76.820 807.76.620 807.76.320 807.76.830 807.76.630 807.76.330
521 610 (24") 807.76.821 807.76.621 807.76.321 807.76.831 807.76.631 807.76.331
(20 1/2") 762 (30") 807.76.822 807.76.622 807.76.322 807.76.832 807.76.632 807.76.332
915 (36") 807.76.823 807.76.623 807.76.323 807.76.833 807.76.633 807.76.333
Supplied With
12V Loox LED Lighting

→ Filler Strip, optional Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

> Allows shelf depth to be extended by 25 mm (1")
> Material: Aluminum

Width matt gold matt nickel slate
457 (18") 807.76.890 807.76.690 807.76.390
610 (24") 807.76.891 807.76.691 807.76.391
762 (30") 807.76.892 807.76.692 807.76.392
915 (36") 807.76.893 807.76.693 807.76.393

FC 4.78 www.hafele.com/us
