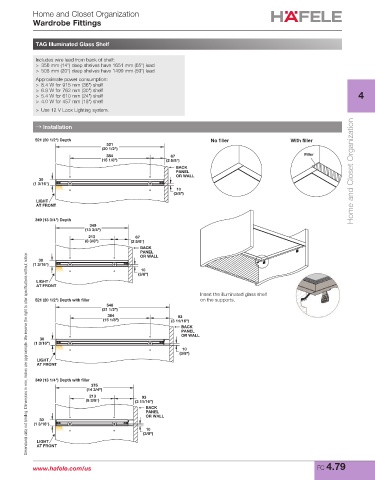

TAG Illuminated Glass Shelf

Includes wire lead from back of shelf:
> 356 mm (14") deep shelves have 1651 mm (65") lead
> 508 mm (20") deep shelves have 1499 mm (59") lead
Approximate power consumption:
> 8.4 W for 915 mm (36") shelf
> 6.9 W for 762 mm (30") shelf
> 5.4 W for 610 mm (24") shelf 4
> 4.0 W for 457 mm (18") shelf
> Use 12 V Loox Lighting system.

→ Installation

521 (20 1/2") Depth No filler With filler
521
(20 1/2")
384 67 Filler
(15 1/8") (2 5/8")
BACK
PANEL Home and Closet Organization
OR WALL
30
(1 3/16")
10
(3/8")
LIGHT
AT FRONT
349 (13 3/4") Depth
349
(13 3/4")
213 67
(8 3/8") (2 5/8")
BACK
PANEL
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
OR WALL
30
(1 3/16")
10
(3/8")
LIGHT
AT FRONT
Insert the illuminated glass shelf
521 (20 1/2") Depth with filler on the supports.
546
(21 1/2")
384 93
(15 1/8") (3 11/16")
BACK
PANEL
OR WALL
30
(1 3/16")
10
(3/8")
LIGHT
AT FRONT

349 (13 1/4") Depth with filler
375
(14 3/4")
213 93
(8 3/8") (3 11/16")
BACK
PANEL
OR WALL
30
(1 3/16")
10
(3/8")
LIGHT
AT FRONT
