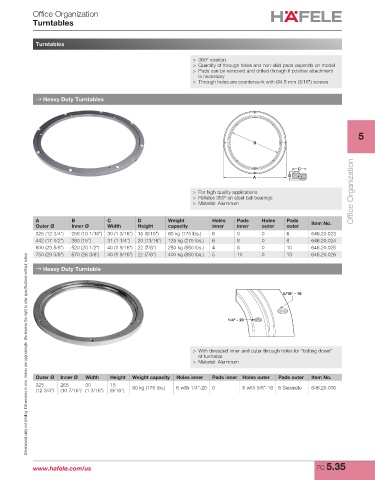

Page 409 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Office Organization
Turntables

Turntables

> 360º rotation
> Quantity of through holes and non-skid pads depends on model
> Pads can be removed and drilled through if positive attachment
is necessary
> Through holes are countersunk with Ø4.5 mm (3/16") screws

→ Heavy Duty Turntables

5

B

C
A D
> For high quality applications Office Organization
> Rotates 360º on steel ball bearings
> Material: Aluminum

A B C D Weight Holes Pads Holes Pads Item No.
Outer Ø Inner Ø Width Height capacity inner inner outer outer
325 (12 3/4") 256 (10 1/16") 30 (1 3/16") 15 (9/16") 80 kg (175 lbs.) 6 0 0 6 646.20.023
442 (17 1/2") 380 (15") 31 (1 1/4") 20 (13/16") 125 kg (275 lbs.) 6 6 0 8 646.20.024
600 (23 5/8") 520 (20 1/2") 40 (1 9/16") 22 (7/8") 250 kg (550 lbs.) 4 8 0 10 646.20.025
750 (29 5/8") 670 (26 3/8") 40 (1 9/16") 22 (7/8") 400 kg (880 lbs.) 5 10 0 13 646.20.026
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Heavy Duty Turntable

5/16" - 18

1/4" - 20

> With threaded inner and outer through holes for “bolting down”
of turntable
> Material: Aluminum

Outer Ø Inner Ø Width Height Weight capacity Holes inner Pads inner Holes outer Pads outer Item No.
325 265 30 15 80 kg (175 lbs.) 6 with 1/4"-20 0 6 with 5/6"-18 6 Separate 646.20.006
(12 3/4") (10 7/16") (1 3/16") (9/16")

www.hafele.com/us FC 5.35
