Office Organization
Power and Charging

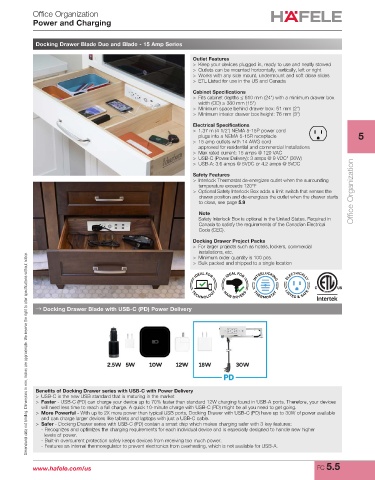

Docking Drawer Blade Duo and Blade - 15 Amp Series

Outlet Features
> Keep your devices plugged in, ready to use and neatly stowed
> Outlets can be mounted horizontally, vertically, left or right
> Works with any side mount, undermount and soft close slides
> ETL Listed for use in the US and Canada
Cabinet Specifications
> Fits cabinet depths ≤ 610 mm (24") with a minimum drawer box
width (OD) ≥ 380 mm (15")
> Minimum space behind drawer box: 51 mm (2")
> Minimum interior drawer box height: 76 mm (3")
Electrical Specifications
> 1.37 m (4 1/2') NEMA 5-15P power cord
plugs into a NEMA 5-15R receptacle 5
> 15 amp outlets with 14 AWG cord
approved for residential and commercial Installations
> Max rated current: 15 amps @ 120 VAC
> USB-C (Power Delivery): 3 amps @ 9 VDC" (30W)
> USB-A: 3.6 amps @ 5VDC or 4.2 amps @ 5VDC
Safety Features
> Interlock Thermostat de-energizes outlet when the surrounding
temperature exceeds 120°F
> Optional Safety Interlock Box adds a limit switch that senses the Office Organization
drawer position and de-energizes the outlet when the drawer starts
to close, see page 5.9

Note
Safety Interlock Box is optional in the United States. Required in
Canada to satisfy the requirements of the Canadian Electrical
Code (CEC).
Docking Drawer Project Packs
> For larger projects such as hotels, lockers, commercial
installations, etc.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Minimum order quantity is 100 pcs.
> Bulk packed and shipped to a single location

→ Docking Drawer Blade with USB-C (PD) Power Delivery

Benefits of Docking Drawer series with USB-C with Power Delivery
> USB-C is the new USB standard that is maturing in the market
> Faster - USB-C (PD) can charge your device up to 70% faster than standard 12W charging found in USB-A ports. Therefore, your devices
will need less time to reach a full charge. A quick 10-minute charge with USB-C (PD) might be all you need to get going.
> More Powerful - With up to 2X more power than typical USB ports, Docking Drawer with USB-C (PD) have up to 30W of power available
and can charge larger devices like tablets and laptops with just a USB-C cable.
> Safer - Docking Drawer series with USB-C (PD) contain a smart chip which makes charging safer with 3 key features:
- Recognizes and optimizes the charging requirements for each individual device and is especially designed to handle new higher
levels of power.
- Built-in overcurrent protection safely keeps devices from receiving too much power.
- Features an internal thermoregulator to prevent electronics from overheating, which is not available for USB-A.

www.hafele.com/us FC 5.5
