Consumables and Tools
Material Handling

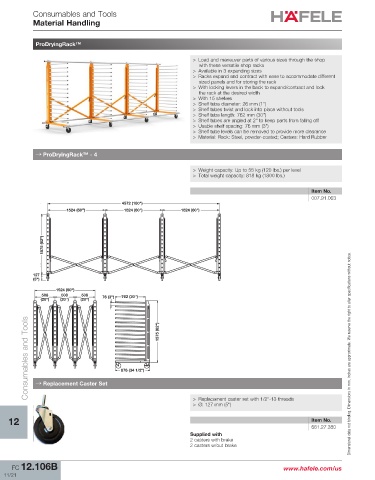

ProDryingRack™

> Load and maneuver parts of various sizes through the shop
with these versatile shop racks
> Available in 3 expanding sizes
> Racks expand and contract with ease to accommodate different
sized panels and for storing the rack
> With locking levers in the back to expand/contract and lock
the rack at the desired width
> With 15 shelves
> Shelf tube diameter: 26 mm (1")
> Shelf tubes twist and lock into place without tools
> Shelf tube length: 762 mm (30")
> Shelf tubes are angled at 2° to keep parts from falling off
> Usable shelf spacing: 76 mm (3")
> Shelf tube levels can be removed to provide more clearance
> Material: Rack: Steel, powder-coated; Casters: Hard Rubber

→ ProDryingRack™ - 4

> Weight capacity: Up to 55 kg (120 lbs.) per level
> Total weight capacity: 818 kg (1800 lbs.)

Item No.
007.91.063
4572 (180")
1524 (60") 1524 (60") 1524 (60")

1575 (62")

127
(5")
1524 (60")
508 508 508 762 (30")
(20") (20") (20") 76 (3")

Consumables and Tools 876 (34 1/2") 1575 (62") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ Replacement Caster Set

> Replacement caster set with 1/2"-13 threads
> Ø: 127 mm (5")

12 Item No.
661.27.380
Supplied with
2 casters with brake
2 casters w/out brake

FC 12.106B www.hafele.com/us
11/21
