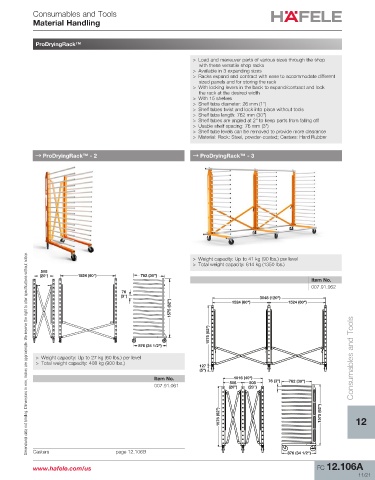

Page 1443 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Consumables and Tools
Material Handling

ProDryingRack™

> Load and maneuver parts of various sizes through the shop
with these versatile shop racks
> Available in 3 expanding sizes
> Racks expand and contract with ease to accommodate different
sized panels and for storing the rack
> With locking levers in the back to expand/contract and lock
the rack at the desired width
> With 15 shelves
> Shelf tube diameter: 26 mm (1")
> Shelf tubes twist and lock into place without tools
> Shelf tube length: 762 mm (30")
> Shelf tubes are angled at 2° to keep parts from falling off
> Usable shelf spacing: 76 mm (3")
> Shelf tube levels can be removed to provide more clearance
> Material: Rack: Steel, powder-coated; Casters: Hard Rubber

→ ProDryingRack™ - 2 → ProDryingRack™ - 3

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Weight capacity: Up to 41 kg (90 lbs.) per level
> Total weight capacity: 614 kg (1350 lbs.)
508
(20") 1524 (60") 762 (30")
Item No.
007.91.062
76
(3") 1524 (60") 3048 (120") 1524 (60")
1575 (62")

1575 (62")

876 (34 1/2")
> Weight capacity: Up to 27 kg (60 lbs.) per level Consumables and Tools
> Total weight capacity: 408 kg (900 lbs.)
127
(5")
Item No. 1016 (40") 76 (3") 762 (30")
508
508
007.91.061 (20") (20")

1575 (62") 1575 (62") 12

Casters page 12.106B 876 (34 1/2")

www.hafele.com/us FC 12.106A
11/21
