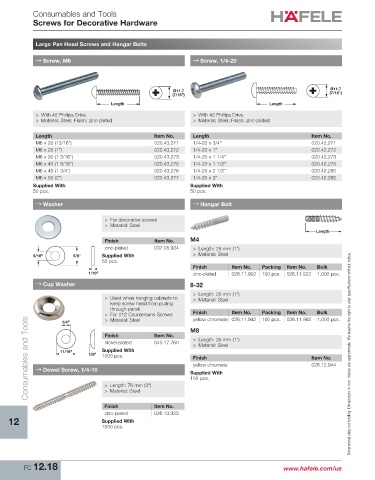

Page 1346 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Consumables and Tools
Screws for Decorative Hardware

Large Pan Head Screws and Hangar Bolts

→ Screw, M6 → Screw, 1/4-20

Ø11.7 Ø11.7
(7/16") (7/16")
Length Length
> With #2 Phillips Drive > With #2 Phillips Drive
> Material: Steel; Finish: zinc-plated > Material: Steel; Finish: zinc-plated

Length Item No. Length Item No.
M6 x 20 (13/16") 020.43.271 1/4-20 x 3/4" 020.42.271
M6 x 25 (1") 020.43.272 1/4-20 x 1" 020.42.272
M6 x 30 (1 3/16") 020.43.273 1/4-20 x 1 1/4" 020.42.273
M6 x 40 (1 9/16") 020.43.275 1/4-20 x 1 1/2" 020.42.275
M6 x 45 (1 3/4") 020.43.276 1/4-20 x 2 1/2" 020.42.280
M6 x 50 (2") 020.43.277 1/4-20 x 3" 020.42.282
Supplied With Supplied With
50 pcs. 50 pcs.

→ Washer → Hangar Bolt

> For decorative screws
> Material: Steel
Length
Finish Item No. M4
zinc-plated 037.05.934 > Length: 25 mm (1")
5/16" 5/8" Supplied With > Material: Steel
50 pcs.
Finish Item No. Packing Item No. Bulk
1/16" zinc-plated 026.11.902 100 pcs. 026.11.922 1,000 pcs.
→ Cup Washer 8-32
> Length: 25 mm (1")
> Used when hanging cabinets to > Material: Steel
keep screw head from pulling
through panel
Finish
> For #12 Countersunk Screws M8 Item No. Packing Item No. Bulk
100 pcs.
yellow chromate 026.11.942
026.11.962
Consumables and Tools → Dowel Screw, 1/4-10 Supplied With 045.17.760 Supplied With Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
1,000 pcs.
> Material: Steel
1/4"
Item No.
Finish
> Length: 25 mm (1")
nickel-plated
> Material: Steel
11/16"
1/8"
1000 pcs.
Finish
yellow chromate
026.12.944
100 pcs.
> Length: 76 mm (3")
> Material: Steel
Finish Item No.
zinc-plated 026.13.923
12 Supplied With
1500 pcs.

FC 12.18 www.hafele.com/us
