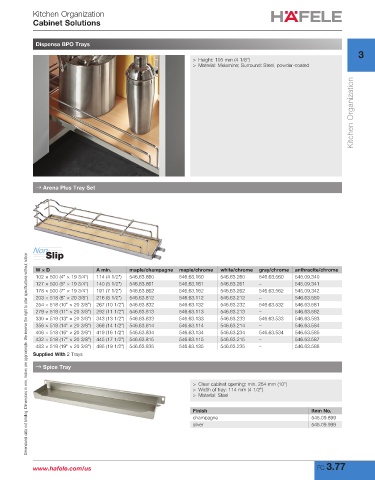

Page 95 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Cabinet Solutions

Dispensa BPO Trays
3
> Height: 105 mm (4 1/8")
> Material: Melamine; Surround: Steel, powder-coated

Kitchen Organization

→ Arena Plus Tray Set

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

W × D A min. maple/champagne maple/chrome white/chrome gray/chrome anthracite/chrome
102 × 500 (4" × 19 3/4") 114 (4 1/2") 546.63.860 546.63.160 546.63.260 546.63.560 545.09.340
127 × 500 (5" × 19 3/4") 140 (5 1/2") 546.63.861 546.63.161 546.63.261 – 545.09.341
178 × 500 (7" × 19 3/4") 191 (7 1/2") 546.63.862 546.63.162 546.63.262 546.63.562 545.09.342
203 × 518 (8" × 20 3/8") 216 (8 1/2") 546.63.812 546.63.112 546.63.212 – 546.63.580
254 × 518 (10" × 20 3/8") 267 (10 1/2") 546.63.832 546.63.132 546.63.232 546.63.532 546.63.581
279 × 518 (11" × 20 3/8") 292 (11 1/2") 546.63.813 546.63.113 546.63.213 – 546.63.582
330 × 518 (13" × 20 3/8") 343 (13 1/2") 546.63.833 546.63.133 546.63.233 546.63.533 546.63.583
356 × 518 (14" × 20 3/8") 368 (14 1/2") 546.63.814 546.63.114 546.63.214 – 546.63.584
406 × 518 (16" × 20 3/8") 419 (16 1/2") 546.63.834 546.63.134 546.63.234 546.63.534 546.63.585
432 × 518 (17" × 20 3/8") 445 (17 1/2") 546.63.815 546.63.115 546.63.215 – 546.63.587
483 × 518 (19" × 20 3/8") 495 (19 1/2") 546.63.835 546.63.135 546.63.235 – 546.63.588
Supplied With 2 Trays
→ Spice Tray

> Clear cabinet opening: min. 254 mm (10")
> Width of tray: 114 mm (4 1/2")
> Material: Steel

Finish Item No.
champagne 545.09.899
silver 545.09.999

www.hafele.com/us FC 3.77
