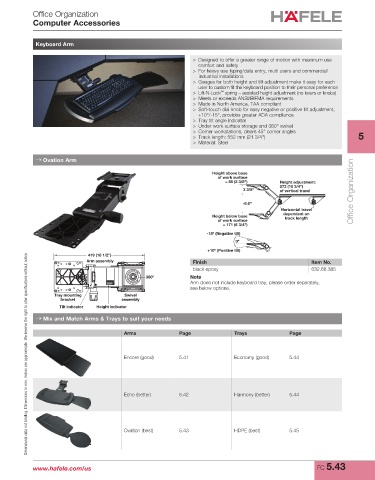

Page 419 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Office Organization
Computer Accessories

Keyboard Arm

> Designed to offer a greater range of motion with maximum use
comfort and safety
> For heavy use typing/data entry, multi users and commercial/
industrial installations
> Gauges for both height and tilt adjustment make it easy for each
user to custom fit the keyboard position to their personal preference
> Lift-N-Lock spring – assisted height adjustment (no levers or knobs)
™
> Meets or exceeds ANSI/BIFMA requirements
> Made in North America, TAA compliant
> Soft-touch dial knob for easy negative or positive tilt adjustment,
+10°/-15°, provides greater ADA compliance
> Tray tilt angle indicator
> Under work surface storage and 360° swivel
> Corner workstations, clears 45° corner angles
> Track length: 552 mm (21 3/4") 5
> Material: Steel

→ Ovation Arm

Height above base
of work surface
= 85 (3 3/8") Height adjustment:
273 (10 3/4")
3 3/8" of vertical travel Office Organization
-8.0"
Horizontal travel
Height below base dependent on
track length
of work surface
= 171 (6 3/4")
-15º (Negative tilt)
0º
+10º (Positive tilt)
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
419 (16 1/2")
Arm assembly Finish Item No.
black epoxy 632.68.385
360º Note
Arm does not include keyboard tray, please order separately,
see below options.
Tray mounting Swivel
bracket assembly
Tilt indicator Height indicator
→ Mix and Match Arms & Trays to suit your needs

Arms Page Trays Page

Encore (good) 5.41 Economy (good) 5.44

Echo (better) 5.42 Harmony (better) 5.44

Ovation (best) 5.43 HDPE (best) 5.45

www.hafele.com/us FC 5.43
