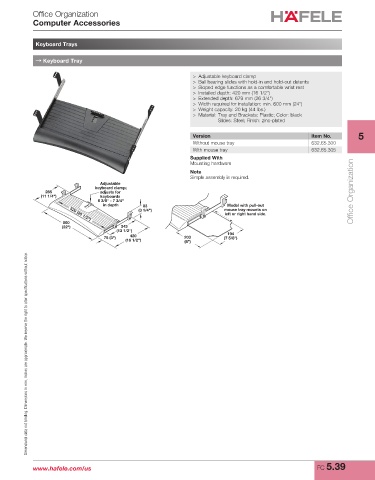

Page 415 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Office Organization
Computer Accessories

Keyboard Trays

→ Keyboard Tray

> Adjustable keyboard clamp
> Ball bearing slides with hold-in and hold-out detents
> Sloped edge functions as a comfortable wrist rest
> Installed depth: 420 mm (16 1/2")
> Extended depth: 679 mm (26 3/4")
> Width required for installation: min. 600 mm (24")
> Weight capacity: 20 kg (44 lbs.)
> Material: Tray and Brackets: Plastic; Color: black
Slides: Steel; Finish: zinc-plated

Version Item No. 5
Without mouse tray 632.65.300
With mouse tray 632.65.305
Supplied With
Mounting hardware
Note
Simple assembly is required.
Adjustable
keyboard clamp;
285 adjusts for Office Organization
(11 1/4") keyboards
6 3/8" - 7 3/4"
in depth 83 Model with pull-out
(3 1/4") mouse tray mounts on
left or right hand side.
520 (20 1/2")
560
(22") 343
(13 1/2") 194
75 (3") 420 203 (7 5/8")
(16 1/2") (8")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

www.hafele.com/us FC 5.39
