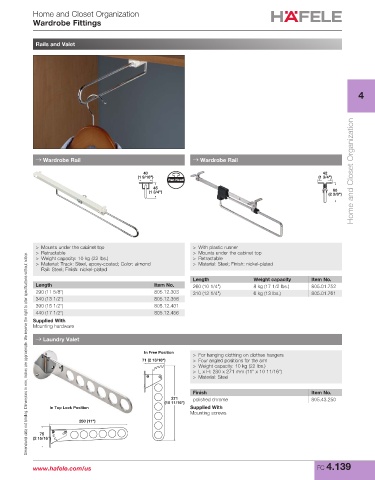

P. 339

Home and Closet Organization
            Wardrobe Fittings


             Rails and Valet








                                                                                                                      4




                                                                                                                    Home and Closet Organization






             → Wardrobe Rail                                    → Wardrobe Rail

                                                40                                                        42
                                              (1 9/16")                                                  (1 3/4")
                                                        Pan Head
                                                   45
                                                  (1 3/4")                                                    60
                                                                                                            (2 3/8")








             >  Mounts under the cabinet top                    >  With plastic runner
             >  Retractable                                     >  Mounts under the cabinet top
          Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
             >  Weight capacity: 10 kg (22 lbs.)                >  Retractable
             >  Material: Track: Steel, epoxy-coated; Color: almond  >  Material: Steel; Finish: nickel-plated
               Rail: Steel; Finish: nickel-plated
                                                                Length              Weight capacity    Item No.
             Length                                Item No.     260 (10 1/4")       8 kg (17 1/2 lbs.)  805.01.752
             290 (11 5/8")                         805.12.303   310 (12 1/4")       6 kg (13 lbs.)     805.01.761
             340 (13 1/2")                         805.12.358
             390 (15 1/2")                         805.12.401
             440 (17 1/2")                         805.12.456
            Supplied With
            Mounting hardware
             → Laundry Valet

                                                In Free Position
                                                                >  For hanging clothing on clothes hangers
                                               71 (2 13/16")    >  Four angled positions for the arm
                                                                >  Weight capacity: 10 kg (22 lbs.)
                                                                >  L x H: 280 x 271 mm (11" x 10 11/16")
                                                                >  Material: Steel

                                                                Finish                                 Item No.
                                                         271    polished chrome                        805.43.250
                                                       (10 11/16")
                 In Top Lock Position                          Supplied With
                                                               Mounting screws
                           280 (11")

              75
            (2 15/16")




            www.hafele.com/us                                                                            FC 4.139
