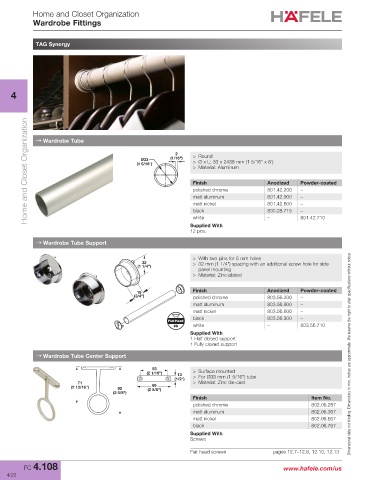

Home and Closet Organization
Wardrobe Fittings

TAG Synergy

4

Home and Closet Organization → Wardrobe Tube (1 5/16") (1/16") > Round Anodized Powder-coated

2
Ø33
> Ø x L: 33 x 2438 mm (1 5/16" x 8')
> Material: Aluminum

Finish
–
polished chrome
801.42.200
matt aluminum
801.42.900
–
matt nickel
830.28.715
black
–
white
Supplied With 801.42.600 – – 801.42.710
12 pcs.
→ Wardrobe Tube Support
> With two pins for 5 mm holes
32 > 32 mm (1 1/4") spacing with an additional screw hole for side
(1 1/4")
panel mounting
> Material: Zinc-plated

19 Finish Anodized Powder-coated
(3/4") polished chrome 803.56.200 –
matt aluminum 803.56.900 –
matt nickel 803.56.600 –
black 803.56.300 –
Flat Head
#8 white – 803.56.710
Supplied With
1 Half closed support
1 Fully closed support
→ Wardrobe Tube Center Support Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

53
(2 1/16") 13 > Surface mounted
(1/2") > For Ø33 mm (1 5/16") tube
71 > Material: Zinc die-cast
66
(2 13/16") 92 (2 5/8")
(3 5/8")
Finish Item No.
polished chrome 802.06.267
matt aluminum 802.06.367
matt nickel 802.06.667
black 802.06.767
Supplied With
Screws

Flat head screws pages 12.7–12.8, 12.10, 12.13
FC 4.108 www.hafele.com/us
4/22
