Home and Closet Organization
Wardrobe Fittings

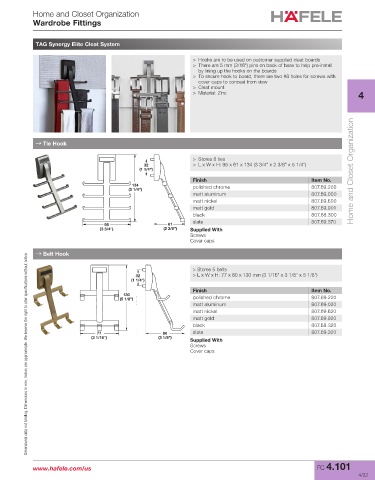

TAG Synergy Elite Cleat System

> Hooks are to be used on customer supplied cleat boards
> There are 5 mm (3/16") pins on back of base to help pre-install
by lining up the hooks on the boards
> To secure hook to board, there are two #8 holes for screws with
cover caps to conceal from view
> Cleat mount
> Material: Zinc 4

→ Tie Hook

> Stores 8 ties
32 > L x W x H: 95 x 61 x 134 (3 3/4" x 2 3/8" x 5 1/4")
(1 1/4") Home and Closet Organization
Finish Item No.
134 polished chrome 807.69.200
(5 1/4")
matt aluminum 807.69.000
matt nickel 807.69.600
matt gold 807.69.901
black 807.68.300
slate 807.69.370
95 61
(3 3/4") (2 3/8") Supplied With
Screws
Cover caps
→ Belt Hook
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Stores 5 belts
32 > L x W x H: 77 x 80 x 130 mm (3 1/16" x 3 1/8" x 5 1/8")
(1 1/4")
Finish Item No.
130
(5 1/8") polished chrome 807.69.220
matt aluminum 807.69.020
matt nickel 807.69.620
matt gold 807.69.920
black 807.68.320
77 80 slate 807.69.320
(3 1/16") (3 1/8")
Supplied With
Screws
Cover caps

www.hafele.com/us FC 4.101
4/22
