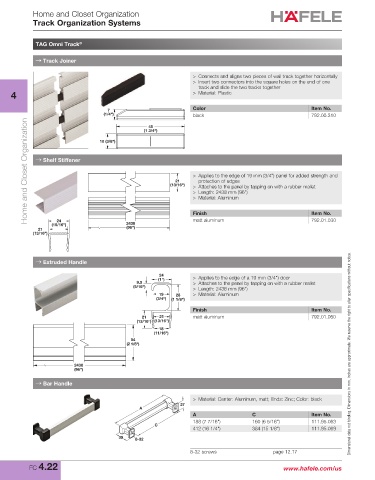

Home and Closet Organization
Track Organization Systems

TAG Omni Track ®

→ Track Joiner

> Connects and aligns two pieces of wall track together horizontally
> Insert two connectors into the square holes on the end of one
track and slide the two tracks together
4 > Material: Plastic

7 Color Item No.
(1/4") (1 3/4") black 792.00.310
Home and Closet Organization → Shelf Stiffener (13/16") > Applies to the edge of 19 mm (3/4") panel for added strength and
45

10 (3/8")

protection of edges
21
> Attaches to the panel by tapping on with a rubber mallet
> Length: 2438 mm (96")
> Material: Aluminum

792.01.030
matt aluminum
24
(96")
21 (15/16") 2438 Finish Item No.
(13/16")

→ Extruded Handle

24
(1") > Applies to the edge of a 19 mm (3/4") door
9.5 > Attaches to the panel by tapping on with a rubber mallet
(5/16") > Length: 2438 mm (96")
19 28 > Material: Aluminum
(3/4") (1 1/8")
Finish Item No.
21 21 matt aluminum 792.01.060
(13/16") (13/16")
18
(11/16")
54
(2 1/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

2438
(96")

→ Bar Handle

> Material: Center: Aluminum, matt; Ends: Zinc; Color: black
27
A
A C Item No.
188 (7 7/16") 160 (6 5/16") 111.95.063
C
412 (16 1/4") 384 (15 1/8") 111.95.069
39 8-32

8-32 screws page 12.17
FC 4.22 www.hafele.com/us
