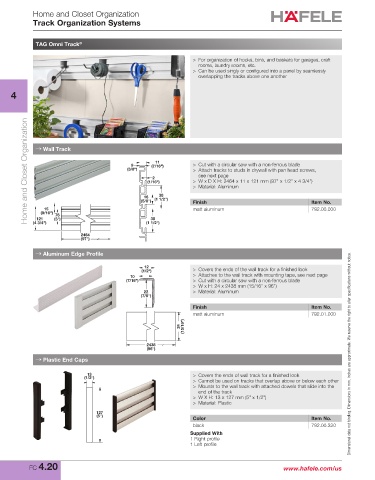

Page 194 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Home and Closet Organization
Track Organization Systems

TAG Omni Track ®

> For organization of hooks, bins, and baskets for garages, craft
rooms, laundry rooms, etc.
> Can be used singly or configured into a panel by seamlessly
overlapping the tracks above one another

4

Home and Closet Organization → Wall Track (3/8") (5/8") (7/16") > Cut with a circular saw with a non-ferrous blade Item No.

11
9
> Attach tracks to studs in drywall with pan head screws,
see next page
2
> W x D X H: 2464 x 11 x 121 mm (97" x 1/2" x 4 3/4")
(1/16")
> Material: Aluminum
38
16
(1 1/2")
Finish
15
(9/16")
76
121
(3")
38
(4 3/4")
2464 (1 1/2") matt aluminum 792.00.000
(97")
→ Aluminum Edge Profile
12
(1/2") > Covers the ends of the wall track for a finished look
10 > Attaches to the wall track with mounting tape, see next page
(7/16") > Cut with a circular saw with a non-ferrous blade
> W x H: 24 x 2438 mm (15/16" x 96")
22 > Material: Aluminum
(7/8")
Finish Item No.
matt aluminum 792.01.000

24 (15/16")

2438
(96")
→ Plastic End Caps Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

13 > Covers the ends of wall track for a finished look
(1/2")
> Cannot be used on tracks that overlap above or below each other
> Mounts to the wall track with attached dowels that slide into the
end of the track
> W X H: 13 x 127 mm (5" x 1/2")
> Material: Plastic
127
(5") Color Item No.
black 792.00.320
Supplied With
1 Right profile
1 Left profile

FC 4.20 www.hafele.com/us
