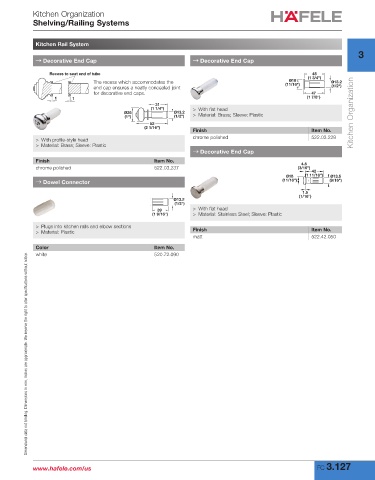

P. 147
Kitchen Organization
Shelving/Railing Systems
Kitchen Rail System
3
→ Decorative End Cap → Decorative End Cap
Recess to seat end of tube (1 3/4")
45
ø18
The recess which accommodates the (11/16") ø13.2
end cap ensures a neatly concealed joint (1/2")
for decorative end caps. 47
1 1 (1 7/8")
31
(1 1/4") > With flat head
Ø25 Ø13.2 > Material: Brass; Sleeve: Plastic Kitchen Organization
(1") (1/2")
52
(2 1/16")
Finish Item No.
> With profile-style head chrome polished 522.03.228
> Material: Brass; Sleeve: Plastic
→ Decorative End Cap
Finish Item No. 4.5
chrome polished 522.03.237 (3/16")
42
Ø18 (1 11/16") Ø13.5
→ Dowel Connector (11/16") (9/16")
1.5
(1/16")
Ø13.2
(1/2")
39 > With flat head
(1 9/16") > Material: Stainless Steel; Sleeve: Plastic
> Plugs into kitchen rails and elbow sections
> Material: Plastic Finish Item No.
matt 522.42.050
Color Item No.
white 520.72.090
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
www.hafele.com/us FC 3.127
