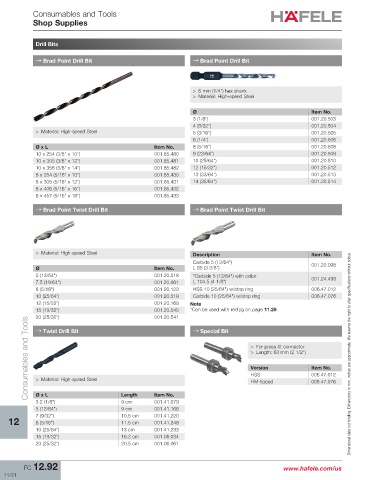

Consumables and Tools
Shop Supplies

Drill Bits

→ Brad Point Drill Bit → Brad Point Drill Bit

> 6 mm (1/4") hex shank
> Material: High-speed Steel

Ø Item No.
3 (1/8") 001.20.503
4 (5/32") 001.20.504
> Material: High-speed Steel 5 (3/16") 001.20.505
6 (1/4") 001.20.506
Ø x L Item No. 8 (5/16") 001.20.508
10 x 254 (3/8" x 10") 001.85.480 9 (23/64") 001.20.509
10 x 305 (3/8" x 12") 001.85.481 10 (25/64") 001.20.510
10 x 356 (3/8" x 14") 001.85.482 12 (15/32") 001.20.512
8 x 254 (5/16" x 10") 001.85.430 13 (33/64") 001.20.513
8 x 305 (5/16" x 12") 001.85.431 14 (35/64") 001.20.514
8 x 406 (5/16" x 16") 001.85.432
8 x 457 (5/16" x 18") 001.85.433

→ Brad Point Twist Drill Bit → Brad Point Twist Drill Bit

> Material: High-speed Steel Description Item No.
Carbide 5 (13/64") 001.20.098
Ø Item No. L 85 (3 3/8")
5 (13/64") 001.20.518 *Carbide 5 (13/64") with collar
7.5 (19/64") 001.20.061 L 104.5 (4 1/8") 001.24.498
8 (5/16") 001.20.123 HSS 10 (25/64") w/stop ring 006.47.012
10 (25/64") 001.20.519 Carbide 10 (25/64") w/stop ring 006.47.076
12 (15/32") 001.20.169 Note
15 (19/32") 001.20.540 *Can be used with red jig on page 11.29.
001.20.541
20 (25/32")
Consumables and Tools > Material: High-speed Steel > For press-fit connector Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Twist Drill Bit
→ Special Bit

> Length: 63 mm (2 1/2")

Version
HSS
006.47.012

Ø x L
9 cm
001.41.079
3.2 (1/8") Length Item No. HM-tipped 006.47.076
5 (13/64") 9 cm 001.41.168
7 (9/32") 10.5 cm 001.41.220
12 8 (5/16") 11.5 cm 001.41.248
10 (25/64") 13 cm 001.41.293
15 (19/32") 16.2 cm 001.06.034
20 (25/32") 20.5 cm 001.06.061

FC 12.92 www.hafele.com/us
11/21
