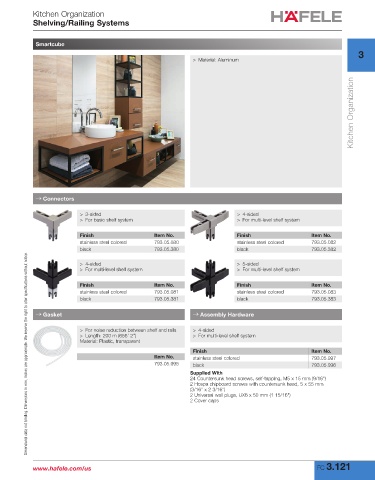

P. 141
Kitchen Organization
Shelving/Railing Systems
Smartcube
3
> Material: Aluminum
Kitchen Organization
→ Connectors
> 3-sided > 4-sided
> For basic shelf system > For multi-level shelf system
Finish Item No. Finish Item No.
stainless steel colored 793.05.080 stainless steel colored 793.05.082
black 793.05.380 black 793.05.382
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> 4-sided > 5-sided
> For multi-level shelf system > For multi-level shelf system
Finish Item No. Finish Item No.
stainless steel colored 793.05.081 stainless steel colored 793.05.083
black 793.05.381 black 793.05.383
→ Gasket → Assembly Hardware
> For noise reduction between shelf and rails > 4-sided
> Length: 200 m (656' 2") > For multi-level shelf system
Material: Plastic, transparent
Finish Item No.
Item No. stainless steel colored 793.05.997
793.05.995 black 793.05.996
Supplied With
24 Countersunk head screws, self-tapping, M5 x 15 mm (9/16")
2 Hospa chipboard screws with countersunk head, 5 x 55 mm
(3/16" x 2 3/16")
2 Universal wall plugs, UX6 x 50 mm (1 15/16")
2 Cover caps
www.hafele.com/us FC 3.121
