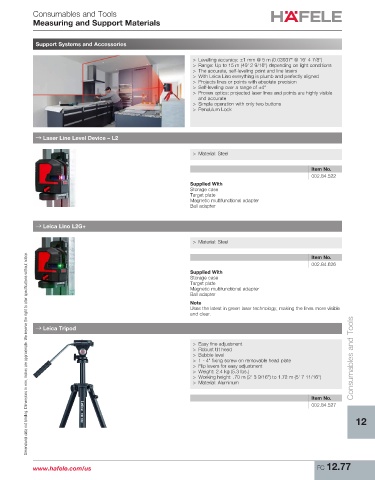

Consumables and Tools
Measuring and Support Materials

Support Systems and Accessories

> Levelling accuracy: ±1 mm @ 5 m (0.03937" @ 16' 4 7/8")
> Range: Up to 15 m (49' 2 9/16") depending on light conditions
> The accurate, self-leveling point and line lasers
> With Leica Lino everything is plumb and perfectly aligned
> Projects lines or points with absolute precision
> Self-leveling over a range of ±4°
> Proven optics: projected laser lines and points are highly visible
and accurate
> Simple operation with only two buttons
> Pendulum Lock

→ Laser Line Level Device – L2

> Material: Steel

Item No.
002.84.522
Supplied With
Storage case
Target plate
Magnetic multifunctional adapter
Ball adapter

→ Leica Lino L2G+

> Material: Steel
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Item No.
002.84.626
Supplied With
Storage case
Target plate
Magnetic multifunctional adapter
Ball adapter
Note
Uses the latest in green laser technology, making the lines more visible
and clear.

→ Leica Tripod

> Easy fine adjustment
> Robust tilt head
> Bubble level
> 1 - 4" fixing screw on removable head plate Consumables and Tools
> Flip levers for easy adjustment
> Weight: 2.4 kg (5.3 lbs.)
> Working height: .70 m (2' 3 9/16") to 1.72 m (5' 7 11/16")
> Material: Aluminum

Item No.
002.84.527

12

www.hafele.com/us FC 12.77
