Home and Closet Organization
Wardrobe Accessories

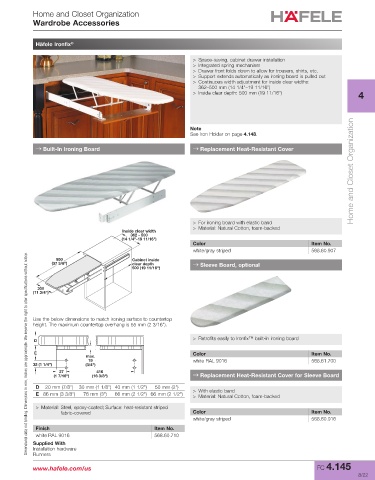

Häfele Ironfix ®

> Space-saving, cabinet drawer installation
> Integrated spring mechanism
> Drawer front folds down to allow for trousers, shirts, etc.
> Support extends automatically as ironing board is pulled out
> Continuous width adjustment for inside clear widths:
362–500 mm (14 1/4"–19 11/16")
> Inside clear depth: 500 mm (19 11/16") 4

Home and Closet Organization
Note
See Iron Holder on page 4.148.

→ Built-In Ironing Board → Replacement Heat-Resistant Cover

> For ironing board with elastic band
> Material: Natural Cotton, foam-backed
Inside clear width
362 - 500
(14 1/4"-19 11/16")
Color Item No.
white/gray striped 568.60.907
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
950 Cabinet inside
(37 3/8") clear depth → Sleeve Board, optional
500 (19 11/16")

300
(11 3/4")

Use the below dimensions to match ironing surface to countertop
height. The maximum countertop overhang is 55 mm (2 3/16").

D > Retrofits easily to Ironfix™ built-in ironing board

E Color Item No.
max.
19 white RAL 9016 568.61.700
32 (1 1/4") (3/4")
37 416
(1 7/16") (16 3/8") → Replacement Heat-Resistant Cover for Sleeve Board
D 20 mm (7/8") 30 mm (1 1/8") 40 mm (1 1/2") 50 mm (2") > With elastic band
E 86 mm (3 3/8") 76 mm (3") 66 mm (2 1/2") 66 mm (2 1/2") > Material: Natural Cotton, foam-backed
> Material: Steel, epoxy-coated; Surface: heat-resistant striped
fabric-covered Color Item No.
white/gray striped 568.60.916
Finish Item No.
white RAL 9016 568.60.710
Supplied With
Installation hardware
Runners
