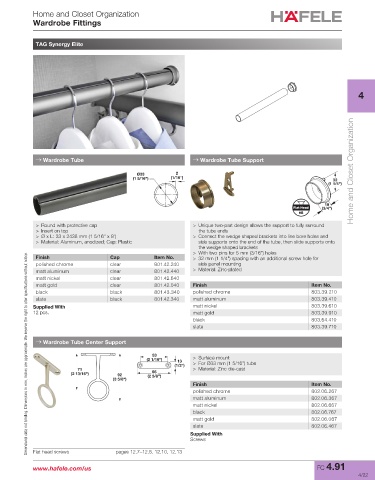

Home and Closet Organization
Wardrobe Fittings

TAG Synergy Elite

4

Home and Closet Organization

→ Wardrobe Tube → Wardrobe Tube Support

Ø33 2
(1 5/16") (1/16") 32
(1 1/4")

19
Flat Head (3/4")
#8
> Round with protective cap > Unique two-part design allows the support to fully surround
> Insert on top the tube ends
> Ø x L: 33 x 2438 mm (1 5/16" x 8') > Connect the wedge shaped brackets into line bore holes and
> Material: Aluminum, anodized; Cap: Plastic side supports onto the end of the tube, then slide supports onto
the wedge shaped brackets
> With two pins for 5 mm (3/16") holes
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Finish Cap Item No. > 32 mm (1 1/4") spacing with an additional screw hole for
polished chrome clear 801.42.240 side panel mounting
matt aluminum clear 801.42.440 > Material: Zinc-plated
matt nickel clear 801.42.640
matt gold clear 801.42.040 Finish Item No.
black black 801.43.340 polished chrome 803.39.210
slate black 801.42.340 matt aluminum 803.39.410
Supplied With matt nickel 803.39.610
12 pcs. matt gold 803.39.910
black 803.64.410
slate 803.39.710

→ Wardrobe Tube Center Support

53 > Surface mount
(2 1/16") 13
(1/2") > For Ø33 mm (1 5/16") tube
71 > Material: Zinc die-cast
66
(2 13/16") 92 (2 5/8")
(3 5/8")
Finish Item No.
polished chrome 802.06.267
matt aluminum 802.06.367
matt nickel 802.06.667
black 802.06.767
matt gold 802.06.067
slate 802.06.467
Supplied With
Screws

Flat head screws pages 12.7–12.8, 12.10, 12.13

www.hafele.com/us FC 4.91
4/22
