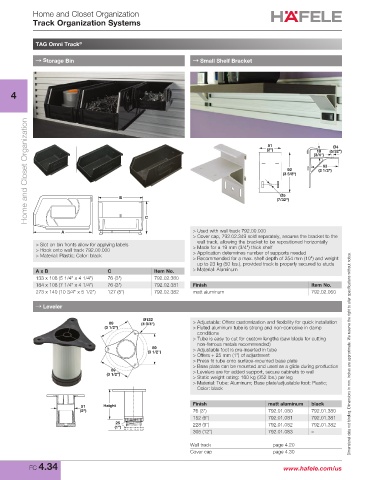

P. 208
Home and Closet Organization
Track Organization Systems
TAG Omni Track ®
→ Storage Bin → Small Shelf Bracket
4
Home and Closet Organization B (2") (7/32") 92 (3/4") 63 (5/32")
51
Ø4
19
(2 1/2")
(3 5/8")
Ø5
A C > Used with wall track 792.00.000
> Cover cap, 792.02.349 sold separately, secures the bracket to the
wall track, allowing the bracket to be repositioned horizontally
> Slot on bin fronts allow for applying labels > Made for a 19 mm (3/4") thick shelf
> Hook onto wall track 792.00.000 > Application determines number of supports needed
> Material: Plastic; Color: black > Recommended for a max. shelf depth of 254 mm (10") and weight
up to 23 kg (50 lbs.), provided track is properly secured to studs
A x B C Item No. > Material: Aluminum
133 x 108 (5 1/4" x 4 1/4") 76 (3") 792.02.380
184 x 108 (7 1/4" x 4 1/4") 76 (3") 792.02.381 Finish Item No.
273 x 140 (10 3/4" x 5 1/2") 127 (5") 792.02.382 matt aluminum 792.02.060
→ Leveler
Ø122
89 (4 3/4") > Adjustable: Offers customization and flexibility for quick installation
(3 1/2") > Fluted aluminum tube is strong and non-corrosive in damp
conditions
> Tube is easy to cut for custom lengths (saw blade for cutting
non-ferrous metals recommended)
89 > Adjustable foot is pre-inserted in tube
(3 1/2")
> Offers + 25 mm (1") of adjustment Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Press fit tube onto surface-mounted base plate
> Base plate can be mounted and used as a glide during production
89 > Levelers are for added support, secure cabinets to wall
(3 1/2")
> Static weight rating: 160 kg (352 lbs.) per leg
> Material: Tube: Aluminum; Base plate/adjustable foot: Plastic;
Color: black
Finish matt aluminum black
51 Height
(2") 76 (3") 792.01.080 792.01.380
152 (6") 792.01.081 792.01.381
25 228 (9") 792.01.082 792.01.382
(1")
305 (12") 792.01.083 –
Wall track page 4.20
Cover cap page 4.30
FC 4.34 www.hafele.com/us
