Kitchen Organization
Drawer Organization

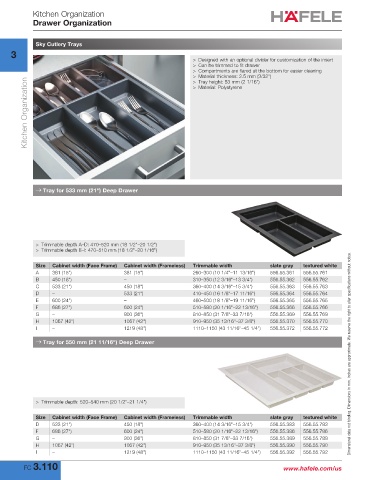

Sky Cutlery Trays
3
> Designed with an optional divider for customization of the insert
> Can be trimmed to fit drawer
> Compartments are flared at the bottom for easier cleaning
> Material thickness: 2.5 mm (3/32")
Kitchen Organization
> Tray height: 53 mm (2 1/16")
> Material: Polystyrene

→ Tray for 533 mm (21") Deep Drawer

> Trimmable depth A–D: 470–520 mm (18 1/2"–20 1/2")
> Trimmable depth E–I: 470–510 mm (18 1/2"–20 1/16")

Size Cabinet width (Face Frame) Cabinet width (Frameless) Trimmable width slate gray textured white
A 381 (15") 381 (15") 260–300 (10 1/4"–11 13/16") 556.55.361 556.55.761
B 450 (18") – 310–350 (12 3/16"–13 3/4") 556.55.362 556.55.762
C 533 (21") 450 (18") 360–400 (14 3/16"–15 3/4") 556.55.363 556.55.763
D – 533 (21") 410–450 (16 1/8"–17 11/16") 556.55.364 556.55.764
E 600 (24") – 460–500 (18 1/8"–19 11/16") 556.55.365 556.55.765
F 686 (27") 600 (24") 510–580 (20 1/16"–22 13/16") 556.55.366 556.55.766
G – 900 (36") 810–850 (31 7/8"–33 7/16") 556.55.369 556.55.769
H 1067 (42") 1067 (42") 910–950 (35 13/16"–37 3/8") 556.55.370 556.55.770
I – 1219 (48") 1110–1150 (43 11/16"–45 1/4") 556.55.372 556.55.772

→ Tray for 550 mm (21 11/16") Deep Drawer Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

> Trimmable depth: 520–540 mm (20 1/2"–21 1/4")

Size Cabinet width (Face Frame) Cabinet width (Frameless) Trimmable width slate gray textured white
D 533 (21") 450 (18") 360–400 (14 3/16"–15 3/4") 556.55.383 556.55.783
F 686 (27") 600 (24") 510–580 (20 1/16"–22 13/16") 556.55.386 556.55.786
G – 900 (36") 810–850 (31 7/8"–33 7/16") 556.55.389 556.55.789
H 1067 (42") 1067 (42") 910–950 (35 13/16"–37 3/8") 556.55.390 556.55.790
I – 1219 (48") 1110–1150 (43 11/16"–45 1/4") 556.55.392 556.55.792
FC 3.110 www.hafele.com/us
