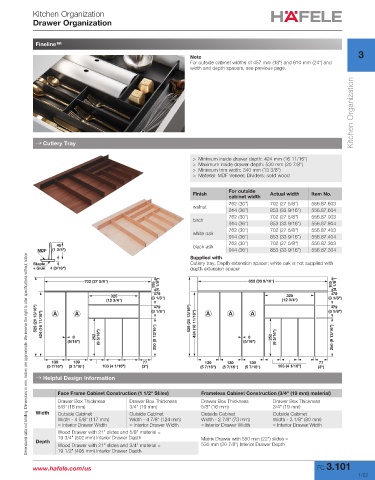

Kitchen Organization
Drawer Organization

Fineline™
3
Note
For outside cabinet widths of 457 mm (18") and 610 mm (24") and
width and depth spacers, see previous page.

Kitchen Organization

→ Cutlery Tray

> Minimum inside drawer depth: 424 mm (16 11/16")
> Maximum inside drawer depth: 530 mm (20 7/8")
> Minimum trim width: 340 mm (13 3/8”)
> Material: MDF Veneer; Dividers: solid wood

Finish For outside Actual width Item No.
cabinet width
762 (30") 702 (27 5/8") 556.87.603
walnut
914 (36") 853 (33 9/16") 556.87.604
762 (30") 702 (27 5/8") 556.87.903
birch
914 (36") 853 (33 9/16") 556.87.904
762 (30") 702 (27 5/8") 556.87.403
white oak
914 (36") 853 (33 9/16") 556.87.404
45 black ash 762 (30") 702 (27 5/8") 556.87.303
MDF (1 3/4") 914 (36") 853 (33 9/16") 556.87.304
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Supplied with
Staple Cutlery tray, Depth extension spacer; white oak is not supplied with
+ Glue 4 (3/16") depth extension spacer
702 (27 5/8") 853 (33 9/16")
105 (4 1/8") 105 (4 1/8")
79 79
325 (3 1/8") 325 (3 1/8")
(12 3/4") 79 (12 3/4") 79
529 (20 13/16") 424 (16 11/16") A A (3 1/8") 529 (20 13/16") 424 (16 11/16") A A A (3 1/8")

8
8
(5/16") 252 (9 5/16") 250 (9 13/16") (5/16") 252 (9 5/16") 250 (9 13/16")

139 139 77 139 139 139 77
(5 7/16") (5 7/16") 103 (4 1/16") (3") (5 7/16") (5 7/16") (5 7/16") 103 (4 1/16") (3")
→ Helpful Design Information

Face Frame Cabinet Construction (1 1/2" Stiles) Frameless Cabinet Construction (3/4" (19 mm) material)
Drawer Box Thickness Drawer Box Thickness Drawer Box Thickness Drawer Box Thickness
5/8" (16 mm) 3/4" (19 mm) 5/8" (16 mm) 3/4" (19 mm)
Width Outside Cabinet Outside Cabinet Outside Cabinet Outside Cabinet
Width - 4 5/8" (117 mm) Width - 4 7/8" (124 mm) Width - 2 7/8" (73 mm) Width - 3 1/8" (80 mm)
= Interior Drawer Width = Interior Drawer Width = Interior Drawer Width = Interior Drawer Width
Wood Drawer with 21" slides and 5/8" material =
19 3/4" (502 mm) Interior Drawer Depth Matrix Drawer with 550 mm (22") slides =
Depth
Wood Drawer with 21" slides and 3/4" material = 530 mm (20 7/8") Interior Drawer Depth
19 1/2" (495 mm) Interior Drawer Depth
