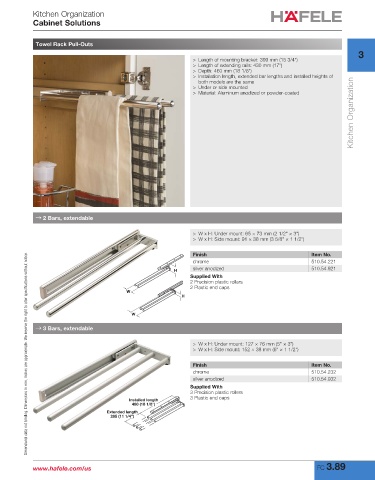

Page 109 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Cabinet Solutions

Towel Rack Pull-Outs
Towel Rack Pull-Outs
3
> Length of mounting bracket: 399 mm (15 3/4") Length of mounting bracket: 399 mm (15 3/4")
>
>
> Length of extending rails: 430 mm (17") Length of extending rails: 430 mm (17")
>
> Depth: 460 mm (18 1/8") Depth: 460 mm (18 1/8")
>
> Installation length, extended bar lengths and installed heights of Installation length, extended bar lengths and installed heights of
Kitchen Organization
both models are the sameboth models are the same
>
> Under or side mounted Under or side mounted
> Material: Aluminum anodized or powder-coated

→ 2 Bars, extendable

> W x H: Under mount: 65 × 73 mm (2 1/2" × 3")
> W x H: Side mount: 91 × 38 mm (3 5/8" × 1 1/2")

Finish Item No.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
chrome 510.54.221
H silver anodized H 510.54.921
Supplied With
2 Precision plastic rollers
2 Plastic end caps
W W
H
H

W W
→ 3 Bars, extendable

> W x H: Under mount: 127 × 76 mm (5" × 3")
> W x H: Side mount: 152 × 38 mm (6" × 1 1/2")

Finish Item No.
chrome 510.54.232
silver anodized 510.54.932
Supplied With
3 Precision plastic rollers
Installed length 3 Plastic end caps
460 (18 1/8")
Extended length
285 (11 1/4")

www.hafele.com/us FC 3.89
